Shaftless Unwinder Unit with Web Guiding System

Shaftless Unwinder Unit with Web Guiding System

Standard Features

Shaftless Unwinder Unit with Web Guiding System, due to heavy roll size, sometimes the Unwinder shaft with Heavy Laminate or Material Roll is not able to withstand the load and sometimes it is not able to move properly with Web Tracking System. Hence Shaftless Unwinder Unit is required with Web Aligner system for with holding the Shaft load and proper winding. Our company provides best quality Shaftless Unwinding System with pure accurate Web Tracking system for accurate result. The structure of the unit is very heavy duty and sturdy to with hold capacity of maximum 5 Tons.We Are Manufacture of Unwind Stand with Web Guiding System

Technical Specifications

  • Electronic of the film Photocell sensor for edge.
  • Electronic 0 5 HP AC Motor.
  • Electrical Panel Board for Operate the complete Unit.
  • Hydraulic Cylinder Adjuster Oil Pipe.
  • Speed of Unit 250/min
  • Variation of the film Winding is 0.5

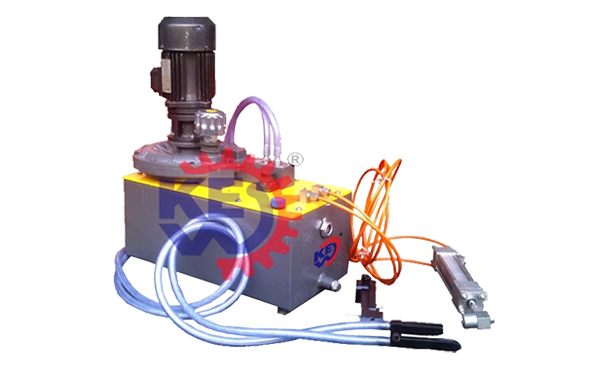

HYDRO -PNEUMATIC Web Aligner Unit.

  • 0.5 H.P. Motor
  • Air Pipe 5 Mtr.
  • Oil Pipe 5 Mtr.
  • Sensor 1 pcs
  • Adjuster 1 pcs.
  • Air Filter 1 pcs.
  • Oil Filter 1 pcs.
  • Hydraulic Cylinder size 6 strock 1 pcs
